Yamato RE-301-AWV Basic and Economical Rotary Evaporator Complete Set (NEW)

  • Sale
  • $6,600.00
  • Regular price $9,130.00
Shipping calculated at checkout.
Authorized DealerWe are an authorized dealer
We are here to helpContact us by Chat, Email and Phone
100% Secure payments

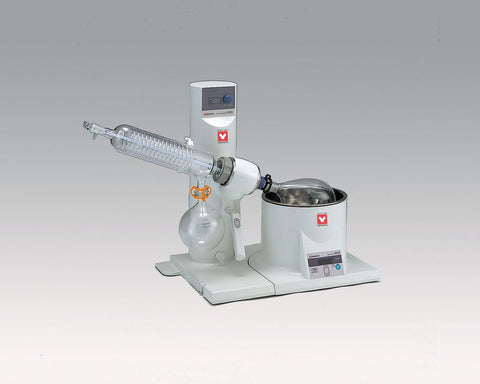

Yamato RE-301-AWV Basic and Economical Rotary Evaporator Complete Set

Manufacturer: Yamato Scientific America

Model: RE301AWV Complete Set

Condition: New. Ships directly from the manufacturer.

New from manufacturer's stock

Estimated lead time: Currently In stock: Typically ships in 5 business days from acceptance of order. Out of stock: Ships in 3 months.

Guarantee: Yamato's 15 Day Money Back Guarantee

Warranty: 1 Year manufacturers warranty

Includes:

  • RE301AWV evaporator

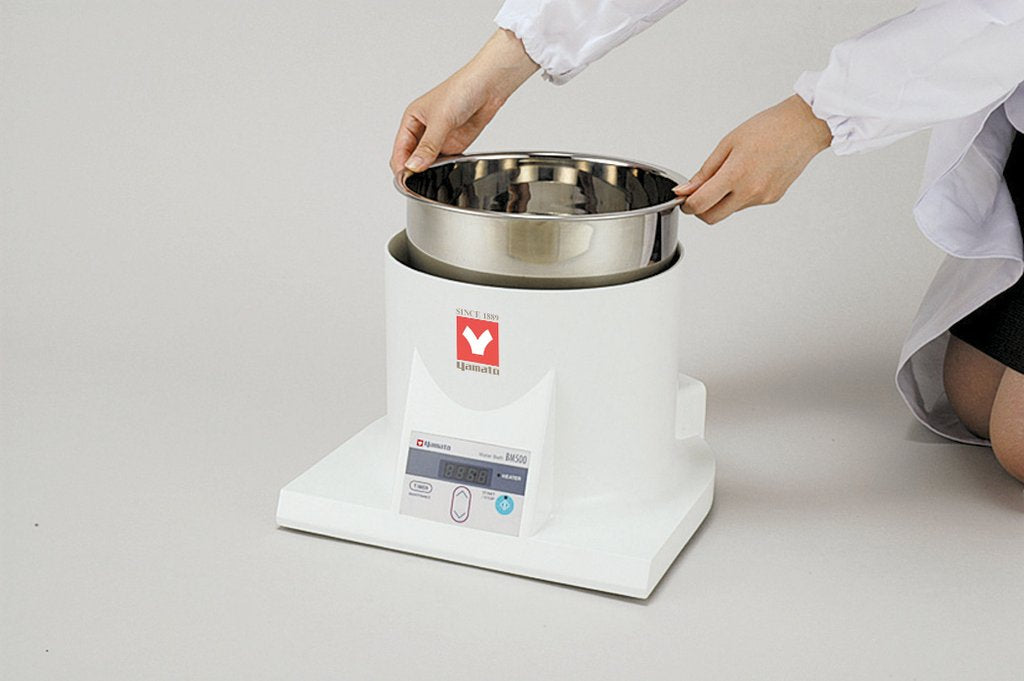

  • BM-500 Water Bath Digital 4.0L 115V 50/60Hz, 12.5A or BM-510 Water Bath Digital 4.0L 220V 50/60Hz, 6.5A. Please specify upon order.
  • Type A glassware for standard use (diagonal)
  • VR300 Vacuum Regulator

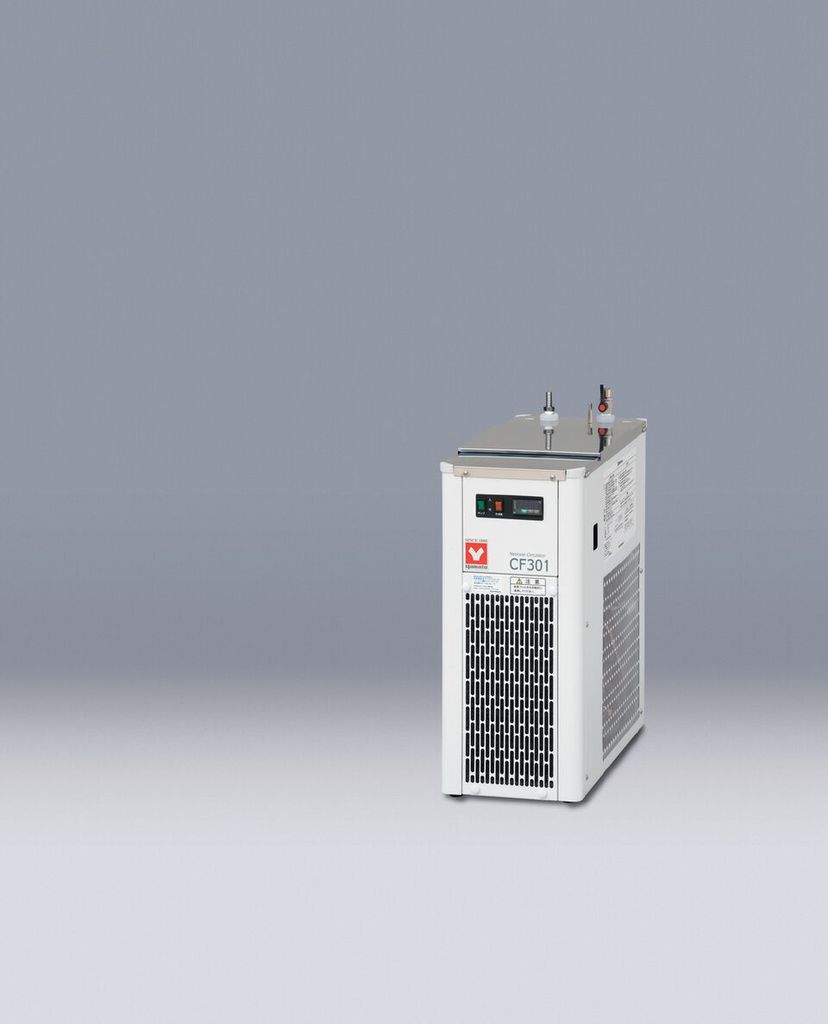

  • CF301 Water Circulator
  • DTC Pump 22A (115V 50/60Hz) or DTC Pump 22B (220V 50/60Hz). Please specify upon order.

Specifications

  • The evaporators motor speed(rpm), vacuum(degrees) and vapor temperature can be digitally set and displayed.Experimental conditions and steps during a reaction can be saved and repeated in future
  • The rotary joints locking position feature is adjustable within 80 mm; especially useful when using varying capacity evaporating flasks or when there is a need to shift the vacuum seals contact position. (Patent No. 3220033)
  • Motorized lift
  • Feedback control motor
  • Voltage-sensing power supply
  • Stable rotation
  • Motor: DC brushless motor (for rotation) and DC motor (for lifting)
  • Number of revolutions: 10 - 250 r/min (rpm)
  • Motorized lift stroke: 150mm
  • Speed (rpm) setting: Control knob (digital indication)
  • Safety measures (main unit): Manual-setting lower limit, upper limit, motor overload
  • Lifting feature: Motorized lifting system

Accessories

  • Water bath (100-120V AC): RE-301-AW
  • Oil bath (100-120V AC): RE-301-AO
  • Water bath (100-120V AC) and Vacuum regulator: RE-301-AWV
  • Water bath (100-120V AC) and Vapor temperature indicator: RE-301-AWT
  • Oil bath (100-120V AC) and Vacuum regulator: RE-301-AOV
  • Oil bath (100-120V AC) and Vapor temperature indicator: RE-301-AOT
