Plastec 30 P30-4 Direct Drive Forward Curve Polypropylene Blower with weather cover, stand and 2HP Controller

  • Sale
  • Regular price $5,543.00
Shipping calculated at checkout.

Plastec 30 P30-4 Direct Drive Forward Curve Polypropylene Blower with weather cover, stand, and 2HP Controller

Manufacturer: Plastec

Model: P30-4

Condition: New

Estimated lead time: Ships in 2-3 weeks from order and payment

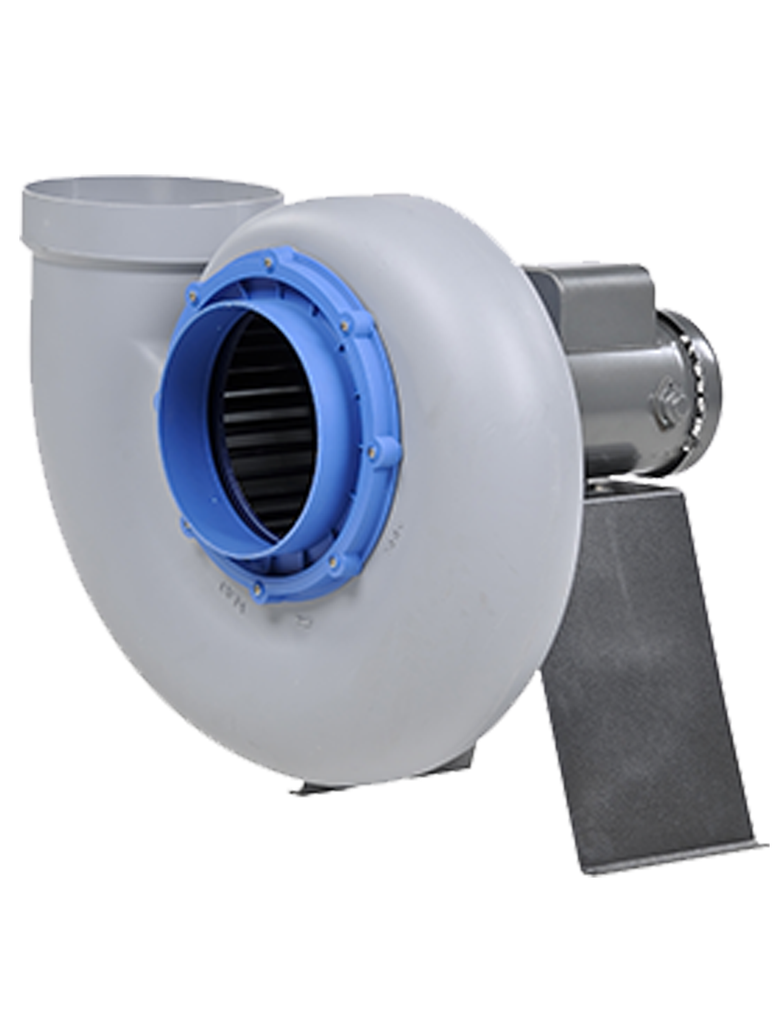

Plastec 30 - Designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion. Hindered-Amine Light Stabilizers (HALS) for increase UV resistance.


  • New, Plastec P30-4 B2 Exhaust Blower Model P30-4/3/60, 2.0HP, 208-230V/460V, Requires 3 Phase Power Input, 1725 RPM, 50/60Hz, TEFC motor for non-flammable application

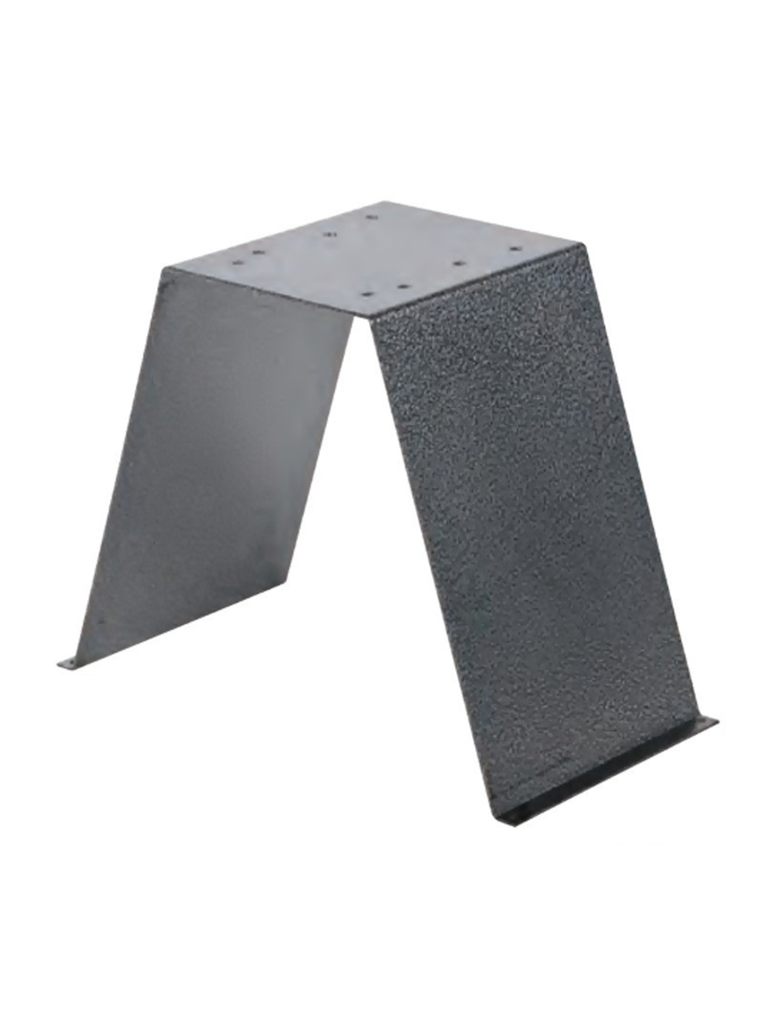

  • New, stainless steel stand for Plastec motor includes mounting holes to the motor.  Suitable for hot and dry climate

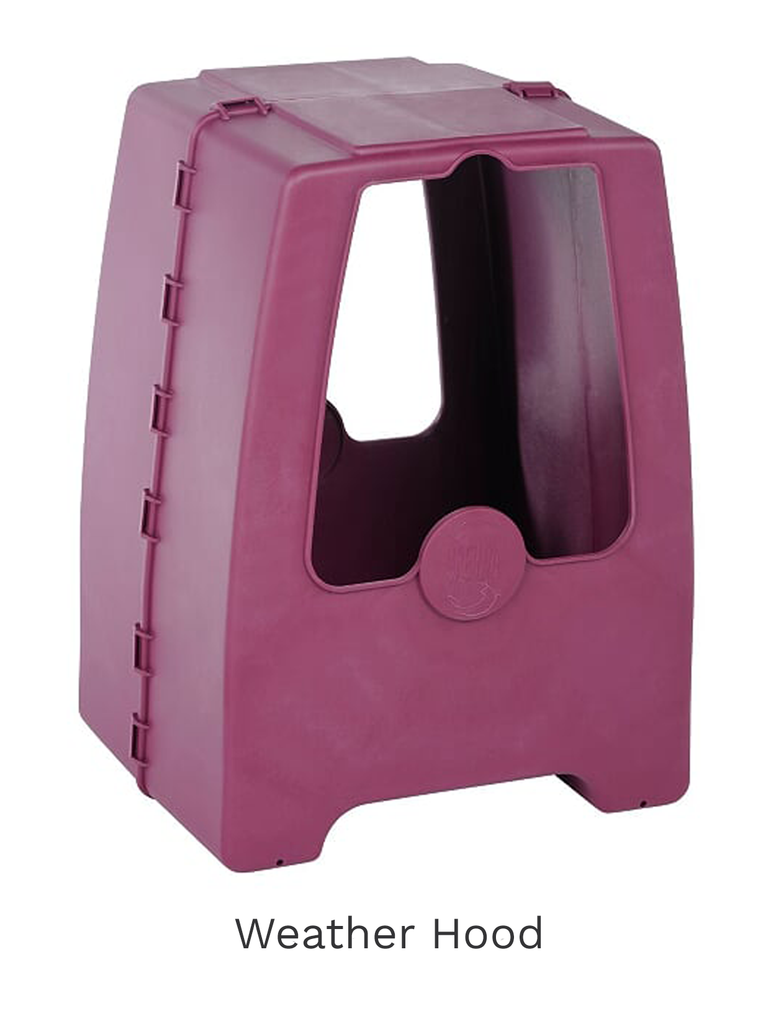

  • WH4 Weather Cover for B2: Polypropylene weather hood size 3, H550. Also function as motor mount Max temp 140F
  • VFD2013230 2HP Controller: Unidrive M 100 Model 02200075A variable frequency drive for 2.0 HP, 230/1 or 230/3 output, 7.5A maximum continuous output for normal duty

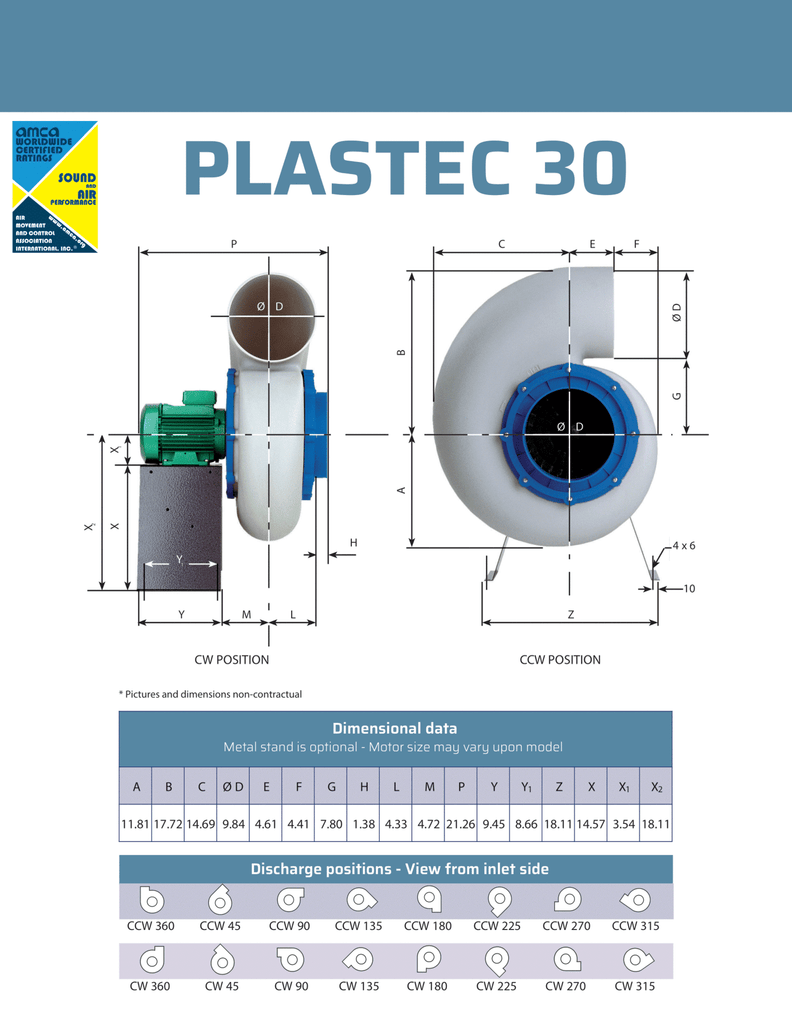

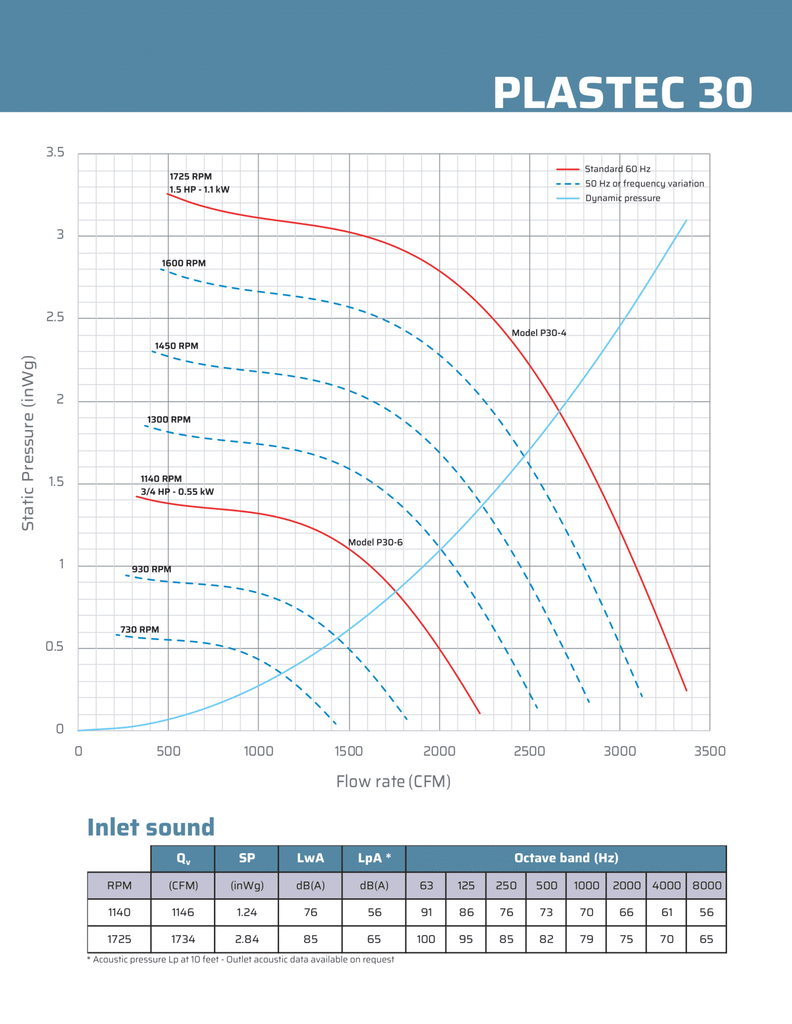

Plastec 30 Performance & Dimensional Specifications PDF

Static Pressure Range: 0.5 to 3 WG
Flow Range: 415 to 3120 CFM
VFD Motors Option: Yes
Phase and Voltage: Single 115/230V & Three 230/460V
Inlet Diameter:
Exhaust Diameter: 10.75

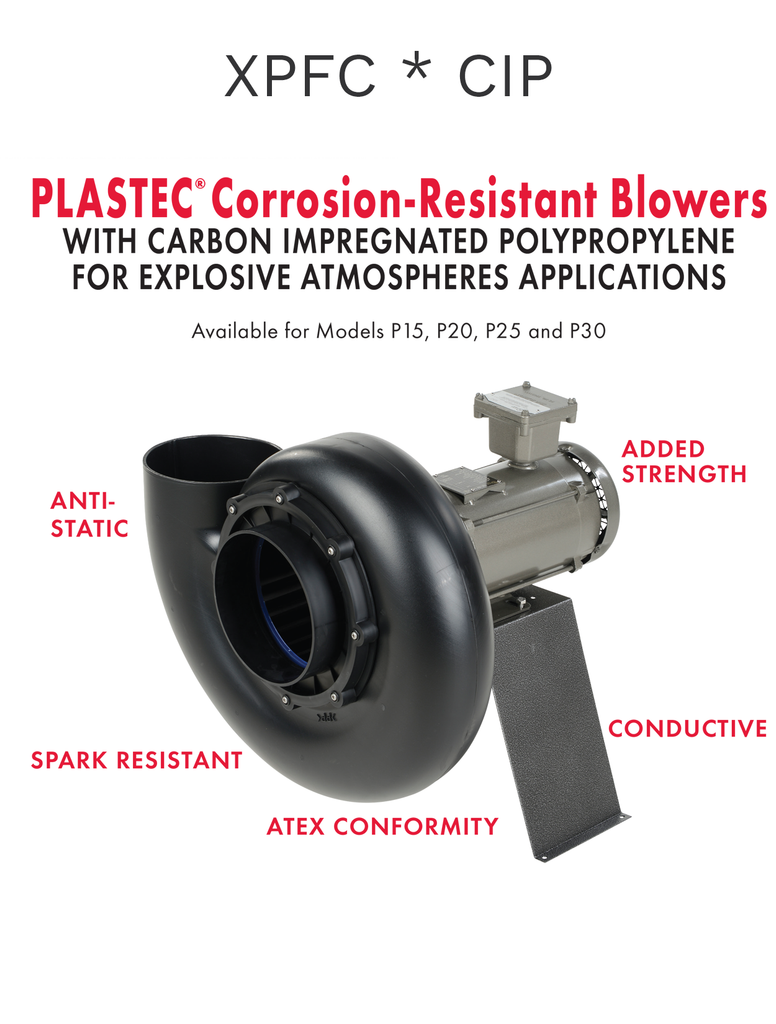

-Also available in XPFC * CIP corrosion-resistant with carbon Impregnated polypropylene for explosive atmosphere applications.-At additional cost. Contact us for pricing.
XPFC * CIP Exhaust Diameter: 10.25”
*Within reason, a reducer or coupler may be utilized to adapt to smaller or larger size
