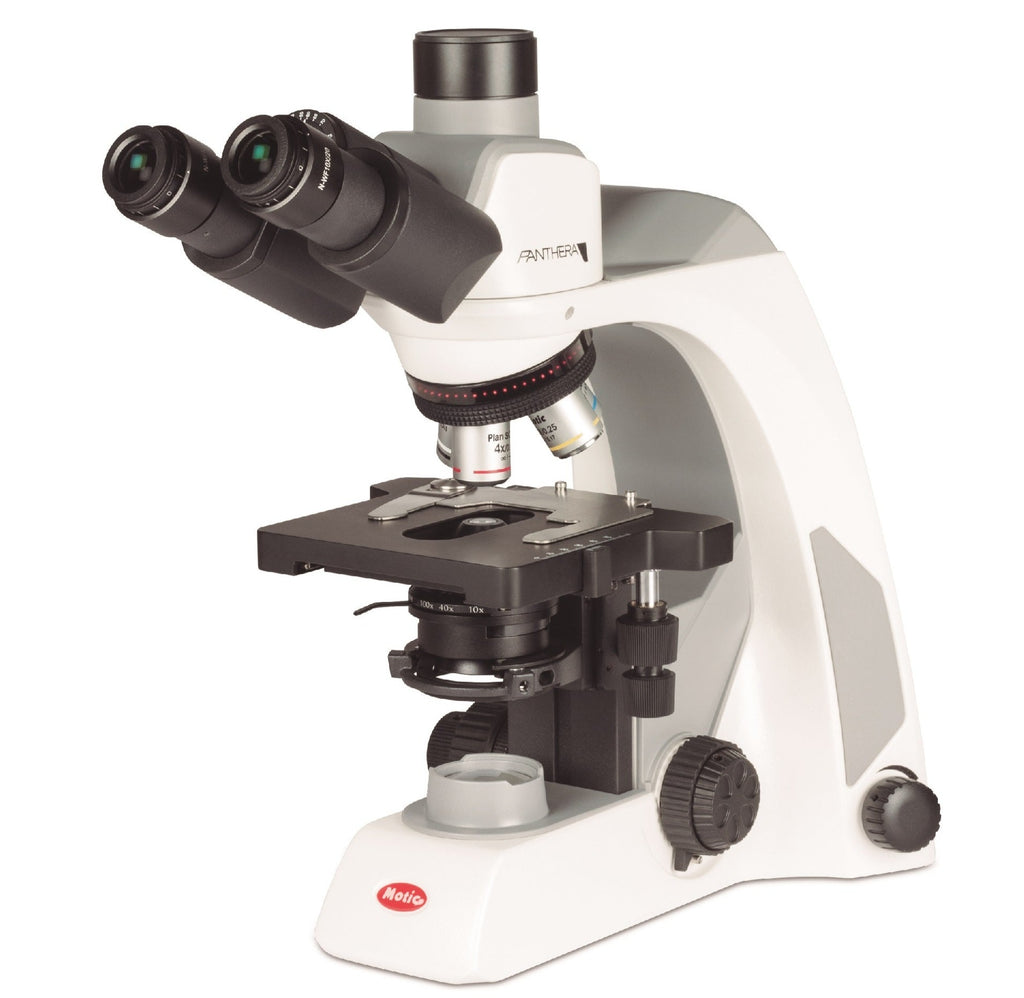

Panthera E2 phase contrast compound microscope with camera package (NEW)

  • Sale
  • $2,468.00
  • Regular price $3,899.00
Shipping calculated at checkout.


Panthera E2 phase contrast compound microscope with camera package

Manufacturer:  Panthera

Model:  E2 plus Moticam

Condition:  New from Manufacturer

Status: NEW

Warranty:  5 years on mechanical components and 1 year on electrical components

Estimated lead time 1-2 weeks typically

Includes:

  • Panthera E2 trinocular microscope
  • 16MPixel digital camera
  • C-mount adapter camera mount tube
  • Dust cover
  • Operations manual (pdf copy)
  • Power cord and USB cable
  • 5 year warranty on mechanical components and 1 year on electrical components

Specifications:

 Model  E2
 Objectives

4X/0.10 (WD 15.5mm),

10X/0.25 (WD 17.4mm),

40X/0.65/S (WD .6mm),

100X/1.25/S-oil (WD 0.14mm)

 Objective classification CCIS SC Plan Achromatic, DIN
 Eyepieces  Widefield UC-WF10X/20mm with diopter adjustment
 Nosepiece Reversed quintuple
 Transmitted illumination Koehler LED
 Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
 Stage size  140 mm x 135mm
 Optical system  Colour Corrected Infinity Optical System
 Observation tube  Trinocular head, Siedentopf type
 Standard contrast technique  Brightfield
 Condenser  Focusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) with slot for contrast sliders
 Diaphragm  Iris diaphragm
 Sensor type  CMOS
 Capture resolution  16MP
 Live display mode through USB  4608 x 3456 pixels
 Data transfer  USB 2.0
 Exterior Dimensions  12"W x 16"D x 17.7"H
 Shipping weight  25 lbs
 Electrical  100-240V, 50/60Hz



The Panthera E2 has a rackless stage and a 360º rotatable head specially for space-saving storage. It has Plan UC optics and an extremely efficient low power illumination, allowing it to run on a mobile battery pack for several hours. The Panthera E2 is able to perform phase contrast and darkfield.  The Moticam digital camera is a high resolution wonder.  It not only captures 16MP images, but also provides up to 4608 x 3456 pixel live feed at up to 15fps.
