Yamato DP-63C vacuum oven (7.6 cu. ft) (NEW)

  • Sale
  • $11,999.00
  • Regular price $12,830.00
Shipping calculated at checkout.

Yamato DP-63C vacuum oven (7.6 cu. ft)

Manufacturer:  Yamato Scientific

Model:  DP63C

New from Manufacturer's stock

Estimated lead time:  5 days typically if in-stock.  3 months if out-of-stock

Large capacity multi-purpose vacuum ovens

Performance and functions

  • Interactive key input of the control panel for easy operation
  • Equipped with high precision functions such as fixed temperature, quick auto stop, auto stop, auto start and program operations for enhanced performance
  • Vacuum reaching time significantly reduced by improvement of the exhaust system, resulting in more efficient operation
  • Vacuum pump can be stored in the bottom cabinet, which is suitable for space limited laboratories
  • Easy removal of piping and maintenance of the vacuum pump
  • Calibration off-set function

Safety features

  • Enhanced safety features: sensor trouble detection, SSR short circuit detection, heater disconnection detector(sensor), memory error, internal communication error, overheating and measurement temperature error
  • Large observation window with protective cover for increased safety


 Operating Temp. Range

 40C to 200C

 Operating Pressure Range

 101 to 0.1 kPa (760 to 1 Torr)

 Temp. Control Accuracy

 +/-1.0C (at 200C)

 Max. Temp. Reaching Time

 Approx. 120 min

 Interior Composition

 Stainless Steel

 Exterior Composition

 Cold rolled steel plate with baked-on melamine resin finish


 Single, swinging

 Heat Insulating Material

 Glass wool

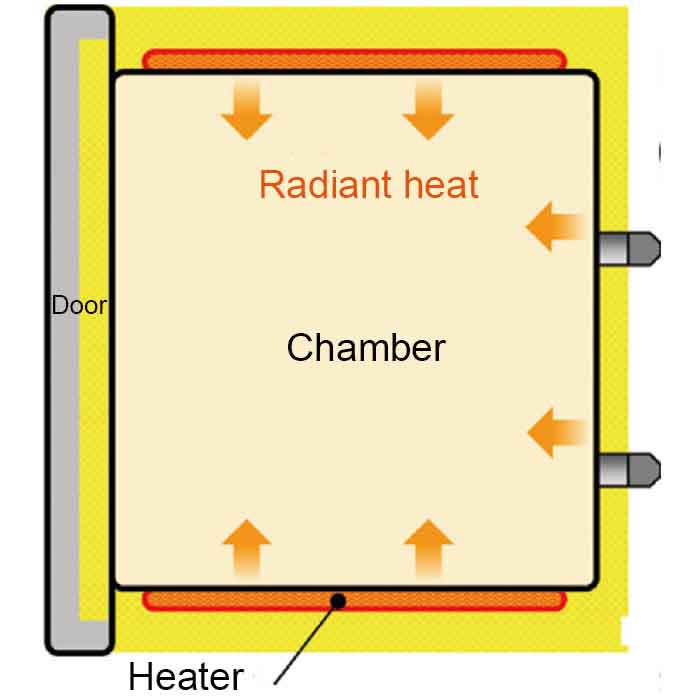

 Mica heater, 3.15 kW

 Vacuum Gauge

 Bourdon tube type, 0~-0.1 MPa (Gauge pressure)

 Observation Window

 Tempered glass and polycarbonate resin plate

 Temp. Control Method

 PID control by microprocessor

 Temp. Setting Method

 Digital setting

 Temp. Display Method

 Green LED digital display


 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min.

 Min. Division

 1 min. or 10 mins.

 Operation Function

 Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments)

 Additional Functions

 Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display

 Heater Circuit Control

 Triac zero-cross control

 Internal Dimensions (WxDxH)

 23.6 x 23.6 x 23.6 inches

 External Dimensions (WxDxH)

 32.3 x 32.3 x 65 inches

 Internal capacity

 216 L


 638 lbs

 Power requirements

 220V / 1 phase / 15A  (no plug included)
