Yamato ADP200C table top vacuum oven (0.35 cu. ft) (NEW)

  • Sale
  • $2,522.00
  • Regular price $2,690.00
Shipping calculated at checkout.
Authorized DealerWe are an authorized dealer
We are here to helpContact us by Chat, Email and Phone
100% Secure payments

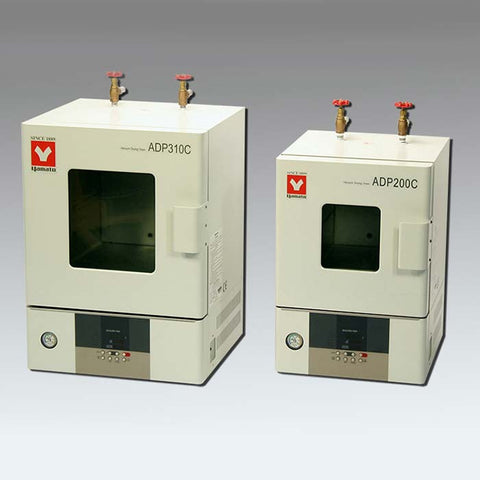

Yamato ADP200C table top vacuum oven (0.35 cu. ft)

Manufacturer:  Yamato Scientific

Model:  ADP200C

New from Manufacturer's stock

Estimated lead time:  5 days typically if in-stock.  3 months if out-of-stock

Standard small size benchtop vacuum drying ovens with enhanced safety features

Performance and functions

  • Easy input of parameters and settings
  • Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
  • Self-diagnostic and overheating prevention functions
  • Silicon rubber door seal prevents air from leaking
  • Independent over heating prevention device for each circuit
  • Customizable with N2 gas inlet and communication ports
  • Calibration off-set function
  • Easy maintenance

    Safety features

    • Sensor trouble detection
    • SSR
    • Short circuit detection
    • Heater disconnecting detection
    • Memory error
    • Overheating and measurement temperature error


     Operating Temp. Range

     40C to 240C

     Operating Pressure Range

     101 to 0.1 kPa (760 to 1 Torr)

     Temp. Control Accuracy

     +/-1.5C (at 240C)

     Max. Temp. Reaching Time

     Approx. 70 min

     Interior Composition

     Stainless Steel

     Exterior Composition

     Cold rolled steel plate with baked-on melamine resin finish


     Single, swinging

     Heat Insulating Material

     Rock wool


     Mica heater, 0.68 kW

     Vacuum Gauge

     Bourdon tube type, 0~-0.1 MPa (Gauge pressure)

     Observation Window

     Tempered glass and polycarbonate resin plate

     Temp. Control Method

     PID control by microprocessor

     Temp. Setting Method

     Digital setting

     Temp. Display Method

     Green LED digital display


     1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min.

     Min. Division

     1 min. or 10 mins.

     Operation Function

     Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments)

     Vacuum port  OD 18mm

     Internal Dimensions (WxDxH)

     7.9 x 10 x 7.9 inches

     External Dimensions (WxDxH)

     15.8 x 16.2 x 23.8 inches

     Internal capacity

     10 L


     66 lbs

     Power requirements

     115 Volt / 1 phase / 6 Amp  (plug included)
