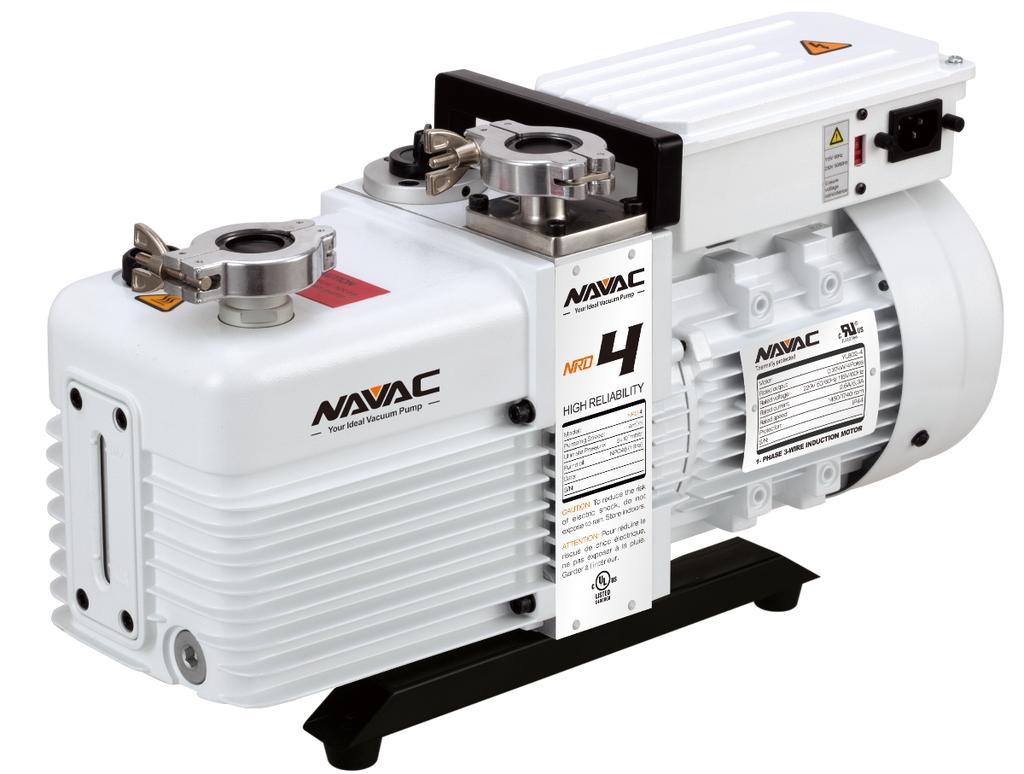

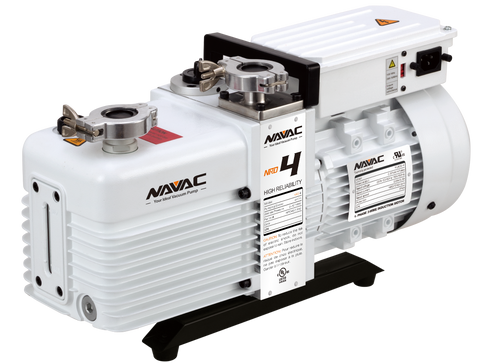

Navac NRD4 Two-stage rotary vane vacuum pump

Manufacturer:  Navac

New from Manufacturer's stock

Estimated lead time:  1 week typically

Order No.:  N10041001

Specifications

Power  115V 60Hz 1ph
Displacement speed

4 m3/hr

2.8 cfm

Ultimate pressure

3.75 x 10 -3 torr

5 x 10 -1 pa

5 x 10 -3 mbar

Water vapor tolerance

30 mbar

22 torr

Water vapor capacity

0.1 kg/hr

Power rating

0.4 kw

0.5 hp

Motor speed

1720 rpm

Oil capacity

1 liter

Oil type (NPO)

46H

Inlet and exhaust flange

KF16

Noise level

56 dB

Ambient temperature

5-40 C

Net weight

42 lbs

Dimensions (LxWxH)

18 x 5.6 x 8 inches



Accessories

  • Oil mist filter
  • Pump fluid
  • Filter
  • Clamp
  • Flange
  • Oring
  • Centering ring
  • Vacuum hose
  • Stainless steel vacuum hose
