Motic AE2000 Trinocular Inverted microscope with 3MP camera package (NEW)

  • Sale
  • $4,050.00
  • Regular price $4,986.00
Shipping calculated at checkout.
Authorized DealerWe are an authorized dealer
We are here to helpContact us by Chat, Email and Phone
100% Secure payments

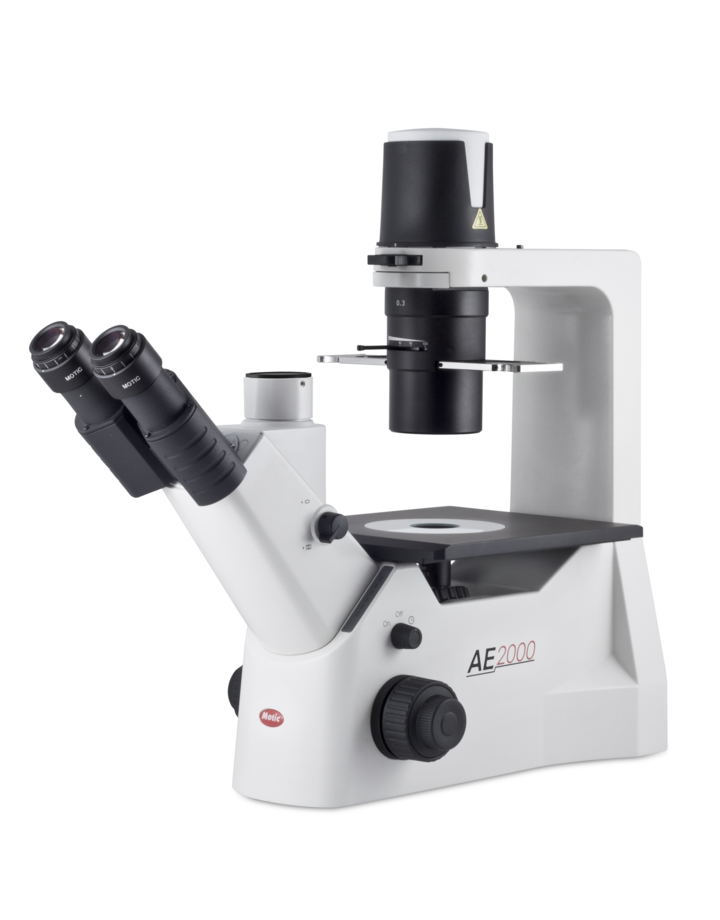

Motic AE2000 Trinocular inverted microscope with 3MP camera package

Manufacturer:  Motic

Model:  AE2000

Condition:  New from Manufacturer

Status: NEW

Warranty:  5 years on mechanical components and 1 year on electrical components

Estimated lead time:  3-5 days typically

Includes:

  • AE2000 inverted microscope
  • 3MPixel digital camera
  • Motic Images Plus 3.0 software for Windows, OSX, and Linux
  • Calibration slide
  • Dust cover
  • Operations manual (pdf copy)
  • Power cord and USB cable
  • 5 year warranty on mechanical components and 1 year on electrical components

Specifications:

 Model  AE2000
 Objectives

4X/0.10 (WD 12.6mm),

PH10X/0.25 (WD 4.1mm),

LWD PH20X/0.30 (WD 4.7mm),

LWD PH40X/0.50 (WD 3.0mm)

 Objective classification  CCIS Plan Achromatic, DIN
 Eyepieces  Widefield N-WF10X/20mm with diopter adjustment
 Nosepiece  Left side facing quadruple
 Phase Contrast  Slider
 Standard contrast technique  Brightfield, phase contrast
 Transmitted illumination  Quartz Halogen 6V/30W with intensity control
 Stage  Plain stage with metal and glass stage inserts
 Stage size  200 x 239 mm
 Optical system  Colour Corrected Infinity Optical System
 Observation tube  Trinocular head, Siedentopf type, 360° swiveling
 Condenser ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
 Diaphragm  Iris diaphragm
 Free working distance  Working distance without condenser 231mm
 Sensor type  CMOS
 Capture resolution  3MP
 Live display mode through USB  2048 x 1536 pixels
 Data transfer  USB 2.0
 Software  Motic Images Plus 3.0 for Windows, OSX and Linux
 Exterior Dimensions  8.5"W x 22"D x 20"H
 Shipping weight  30 lbs
 Electrical  100-240V, 50/60Hz



The AE2000 is a revolutionary design that is packed with features and sets a new benchmark in affordable inverted microscopy. Motic’s AE2000 inverted microscope is designed for routine live cell inspection with an easy and flexible set up, ideal for university, routine-clinical, and lab environments. The model’s main applications offer superior image quality when viewing cell cultures in microbiology, living organisms and tissue culture samples. The entire microscope including optical system is manufactured with completely lead free, following the International RoHS regulations.
