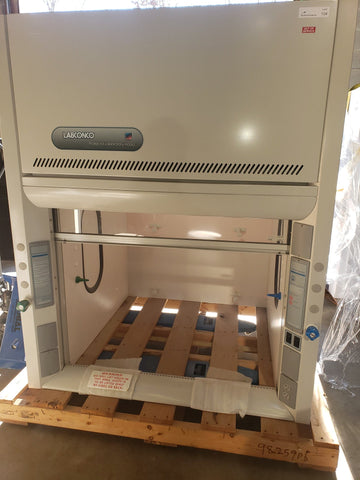

Labconco Protector XL 4 foot benchtop fume hood package (Extra depth)
Manufacturer: Labconco
Model: Protector XL
Catalog number: 9750403
Condition: Preowned. Never installed. Cleaned prior to shipment.
Estimated lead time: Typically ships in 1-2 weeks from order and payment.
Fume hood color: Labconco's glacier white
Flammable cabinet color: yellow/tan/off white/blue depending on what's in stock at the time of order.
Includes:
- 4 foot Labconco protector XL benchtop fume hood
- Dished epoxy countertop
- 48" flammable storage cabinet
- (2) 13" filler panels
- (2) fume hood side panels
- Vertical sash
- (1) 120V duplex receptacles
- (1) cold water package (cold water faucet and cup sink) on the left side
- (1) gas service fixture (blue label) on the right side
- Fluorescent light fixture and light switch
- Package, pallet and crate for safe freight shipment from Maryland
- No air velocity monitor
- No blower switch
Specifications
Fume Hood Attributes
-
Product Subcategory: General Chemistry
-
Nominal Width: 4'
-
Region: U.S. and Canada
-
Blower Requirements: Remote blower required
-
Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, NFPA 45, SEFA 1, UL
-
Electrical Duplexes: 1
-
Lighting: T8 fluorescent
-
Service Fixtures: 2
-
Style: Benchtop
Fume hood Specifications
-
Estimated Shipping Weight: 430.0 lbs.
-
Estimated Shipping Weight metric: 195.0 kg
-
Exterior Dimensions: 48.0" w x 45.2" d x 59.0" h
-
Interior Dimensions: 38"W x 39"D x 48"H
-
Electrical: 115 volts, 60 Hz, Domestic
Cabinet Specifications
-
ADA-Compliance: Standard Height
-
Cabinet Width: 48" (122 cm)
-
Door(s): Dual, Manual Close
-
Filler Panel Depth: 13.0"
-
Base Height: 35.5" (90.2 cm)
-
Storage Type: Solvent storage
Specifications
-
Estimated Shipping Weight: 750.0 lbs
Accessories
Options:
- 4 wide standard base cabinet instead of flammable storage cabinet
- 4’ wide acid/base [corrosive] base cabinet instead of flammable storage cabinet
- Pre-wired and installed air velocity monitor
- Explosion proof incandescent lighting fixture package
Exhaust blower (choose one):
Exhaust fan includes drain fitting, weather cap and spring rail mounts.
Rated for 4ft benchtop hood with up to 50 linear feet of ductwork with up to two 90 degree angles.
Standard air flow (100 fpm)
FC 109 1/3 HP Forward curved exhaust blower
Air moving capacity: 650cfm @100fpm
Motor: 110V/220V Capacitor Start ODP
Enhanced air flow (150 fpm)
FC 109 1/2HP Forward curved exhaust blower
Air moving capacity: 975cfm @150fpm
Motor: 110V/220V Capacitor Start ODP
Exhaust Blower Options:
- Epoxy coated fan blade housing to reduce corrosion from most normal exhausts [not recommended for temperatures over 180F.
- Explosion-proof motor
- Spark-resistant aluminum fan blade
- Vent stack
- Inlet and outlet protective screens
- Cen-FP, a fluoropolymer resin coating especially resistant to highly corrosive chemicals such as nitric and sulfuric acids. Withstands a wide range of temperatures.
