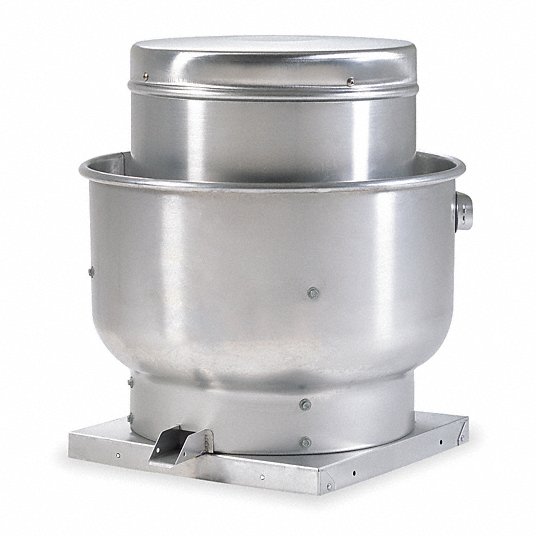

Exhaust blower package for 5 foot fume hood | KA Centrifugal Upblast Roof Mount Blower with roof curb

  • Sale
  • Regular price $1,795.00
Shipping calculated at checkout.
Authorized DealerWe are an authorized dealer
We are here to helpContact us by Chat, Email and Phone
100% Secure payments

Exhaust Blower for 6 foot fume hood | KA Centrifugal Upblast Roof Mount Exhaust Blower with roof curb Package

Manufacturer: KA

Model: EB5-4HZ40

Condition: New

Estimated lead time: Typically ships in 2 weeks from order and payment.

Warranty: 1 year limited manufacturer's warranty (parts)

These are custom made. No returns of open units are accepted.

Includes

  • New model 20FT11 exhaust blower rated for 8ft benchtop fume hood, up to 50 feet of ductwork with up to two 90 degree elbows/turns.
  • New Roof Curb: Adj. Nonventilated Curbs, Square Curb, 10 1/2 in to 19 in Inside Dimensions

Specifications for exhaust fan

  • Drive Type:  Direct Drive
  • Includes Drive Package with Motor:  Yes
  • Wheel Diameter:  11 in
  • Exhaust Airflow @ 0.250 in SP:  806 cfm
  • Exhaust Airflow @ 0.375 in SP:  707 cfm
  • Exhaust Airflow @ 0.500 in SP:  411 cfm
  • Maximum Static Pressure:  3/8 in wc
  • For High-Static Pressure Applications:   No
  • Nameplate Voltage:  115V AC
  • Phase:  1
  • Frequency:  60 Hz
  • Current:  2.2 A
  • Electrical Connection:   Power Cord
  • Motor Horsepower:   1/6 hp
  • Brake Horsepower:   0.9 hp
  • Motor Speed:  1,140 RPM
  • Maximum Fan Speed:  1,140 RPM
  • Motor Enclosure:   Open Dripproof
  • Motor Location:   Out of Airstream
  • High-Efficiency Motor:  No
  • Speed Controllable:   Yes
  • Number of Speeds:   1
  • Wheel Type:  Backward Inclined
  • Wheel Material:  Aluminum
  • Housing Material:  Aluminum
  • Housing Material Fabrication:  Spun
  • Maximum Ambient Temperature:   300 °F
  • Maximum Inlet Air Temperature:   300 °F
  • Base Shape:   Square
  • Base Dimensions (HxWxL):  1.8" x 22" x22"
  • Overall Height:  30 in
  • Overall Width:  24-7/8 in
  • Overall Depth:  23-3/4 in
  • Damper Size:  15 x 15 in
  • Mounting Location:  Roof
  • Mounting Orientation:  Vertical
  • Mount Type:  Roof Curb
  • Standards:  AMCA Sound and Air; UL/cUL 762
  • Includes:  NEMA 1 Junction Box
  • Resistance Properties Spark Resistant
  • Compatible Curb Grainger Part Number: 2RB75; 2ZV82; 4C453; 4C670; 4HX38; 4HX46; 4HX54; 4HX61
  • Compatible Speed Control: 48C172
  • Sound Level
    • 7.2 sones @ 0.000 in SP and 5 ft, 7.0 sones @ 0.125 in SP and 5 ft, 6.5 sones @ 0.250 in SP and 5 ft, 6.0 sones @ 0.375 in SP and 5 ft,
  • Brand:  DAYTON
  • Features:  Non-overloading Centrifugal Wheel Design
  • UNSPSC:  40101502
  • Country of Origin:  USA (subject to change)
Product Description

KA direct-drive fans help to ventilate a kitchen or similar environment with grease-laden or humid air. They feature a propeller that's directly mounted on the motor shaft. This reduces friction and improves efficiency when compared to a belt-drive fan. Direct-drive fans also have fewer moving parts and typically require less maintenance than belt-drive fans. Fans intended for use with heavy grease feature steel propellers and housings which are easier to clean and are less reactive to cleaning chemicals.

Specifications for Roof Curb

  • For Fan Type Downblast Fans; Filtered Supply Fans; Upblast Fans
  • Brand: DAYTON
  • Curb Shape: Square
  • Curb Height:  12 in
  • Finish:   Galvanized
  • For Use With:  16 in to 21-1/2 in Square Base
  • Metal Material Thickness: 18 ga
  • Material:  Steel
  • Standards:  UL 705
  • Curb Inside Width:  10-1/2 in to 19 in
  • Curb Outside Width:  14-1/2 in to 23 in
  • Adjustability:  Adjustable
  • Ventilation Type:   Nonventilated
  • Flashing Flange Width:  4 in
  • UNSPSC:  30151609
  • Country of Origin:   Mexico (subject to change)
Product Description

Roof curbs provide a sturdy, weather-resistant mounting point for roof-mounted fans. They can be adjustable or come in fixed sizes to fit a variety of installations. They also can be ventilated or non-ventilated to comply with your local HVAC codes.
