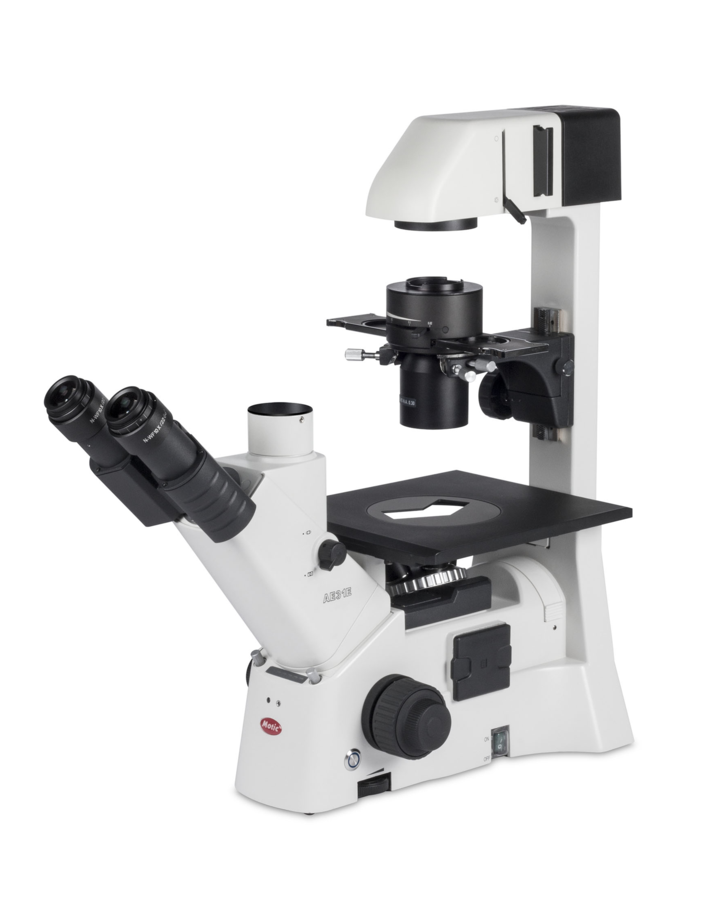

Motic AE31E Trinocular inverted microscope with 3MP camera package
Manufacturer: Motic
Model: AE31E
Condition: New from Manufacturer
Status: NEW
Warranty: 5 years on mechanical components and 1 year on electrical components
Estimated lead time: 1-2 weeks typically
| Model | AE31E |
| Objectives |
4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), LWD PH40X/0.50 (WD 3.0mm) |
| Objective classification | CCIS EC Plan Achromatic, DIN |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Nosepiece | Left side facing quintuple |
| Phase Contrast | Slider |
| Standard contrast technique | Brightfield, phase contrast |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control |
| Stage | Plain stage with metal and glass stage inserts |
| Stage size | 200 x 239 mm |
| Optical system | Colour Corrected Infinity Optical System |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Condenser | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) |
| Diaphragm | Iris diaphragm |
| Free working distance | Working distance without condenser 231mm |
| Sensor type | CMOS |
| Capture resolution | 3MP |
| Live display mode through USB | 2048 x 1536 pixels |
| Data transfer | USB 2.0 |
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux |
| Exterior Dimensions | 8"W x 22"D x 21"H |
| Shipping weight | 30 lbs |
| Electrical | 100-240V, 50/60Hz |
The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the, c-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.
